eRaay - Survey Programmers Guide

Key Technologies

In order to extend this document, you need to have sound knowledge on the following:

• Internet Information Services (IIS)
• Visual Studio Code
• jQuery
• HTML/CSS

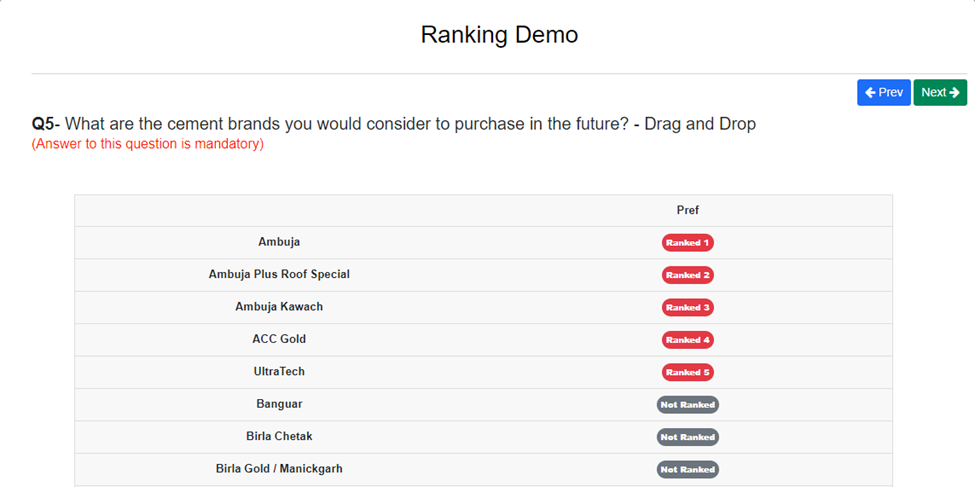

Ranking (Drag and Drop) using Matrix Textbox

To implement a ranking drag-and-drop feature for a matrix of textboxes, here’s a guide on setting up the enableDragDropRanking function. This function enables users to rank items by dragging and dropping them within a specified question element, based on the given question number and maximum ranking.

• To enable drag-and-drop ranking functionality, call enableDragDropRanking inside an init function, passing in the question number and the maximum ranking limit.
• If the maximum rank is not reached, a default rank will be automatically applied to all items.

Example:

CopyenableDragDropRanking("Q5", 3);

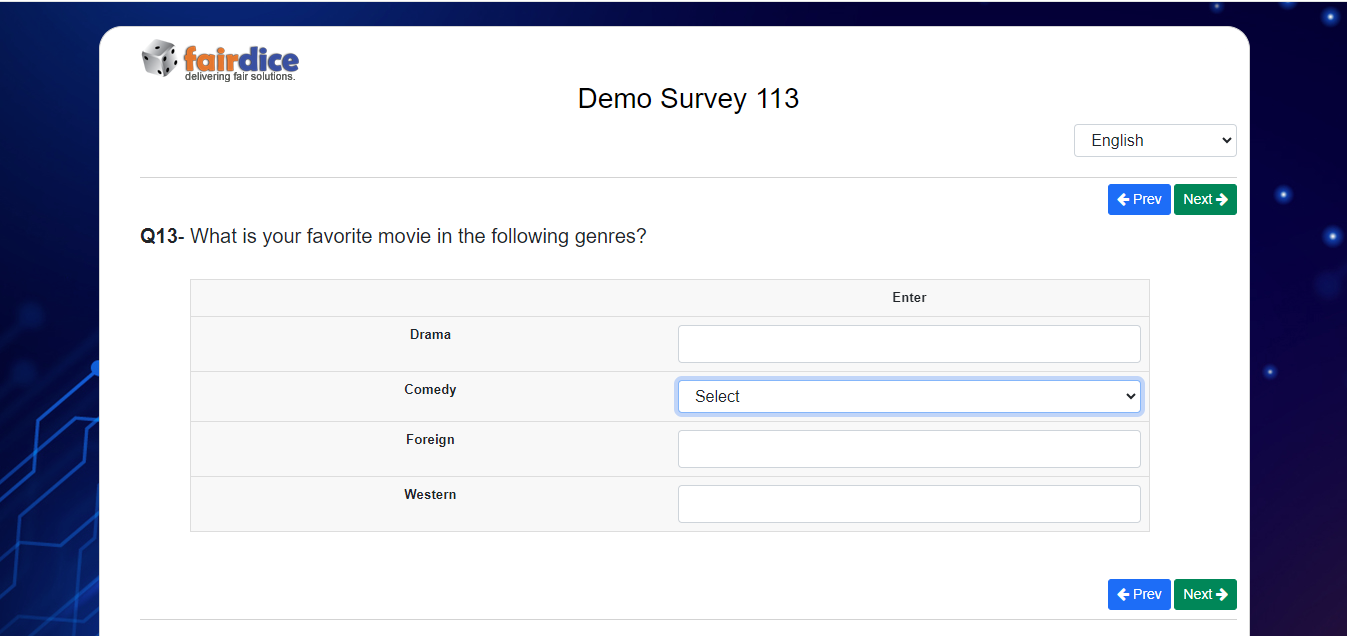

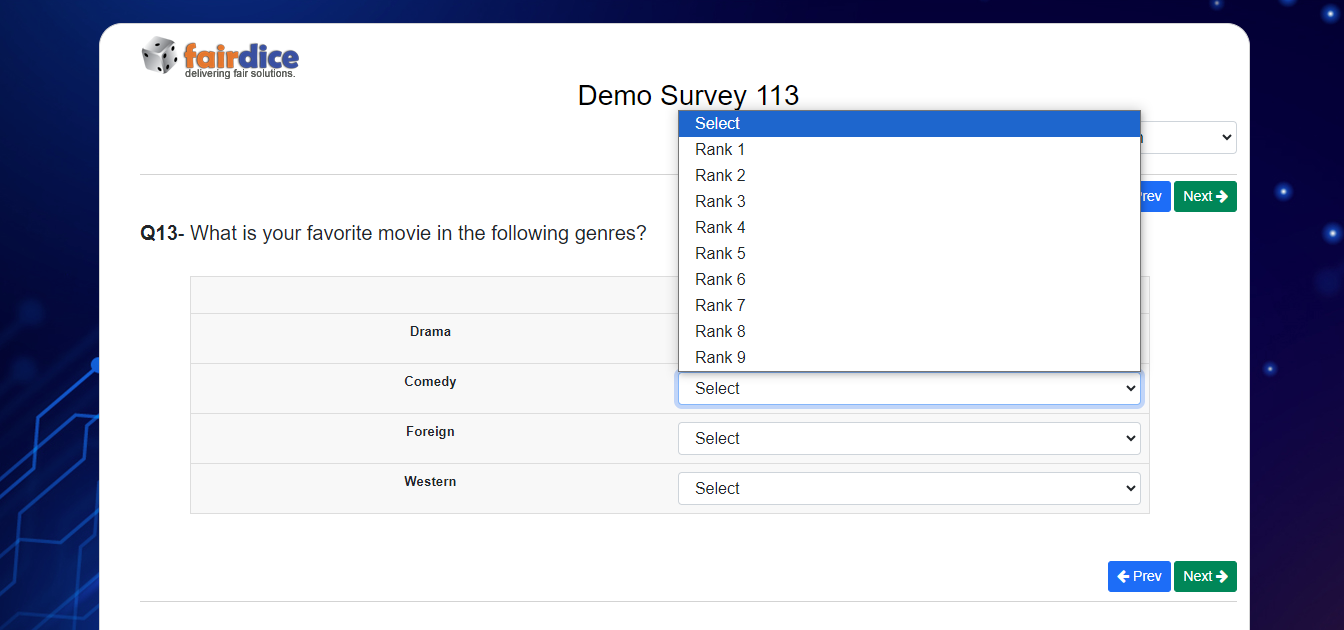

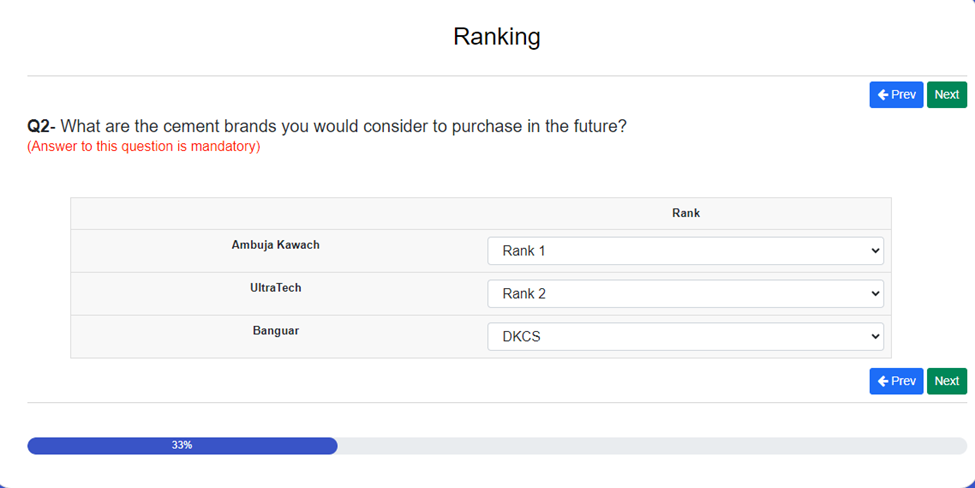

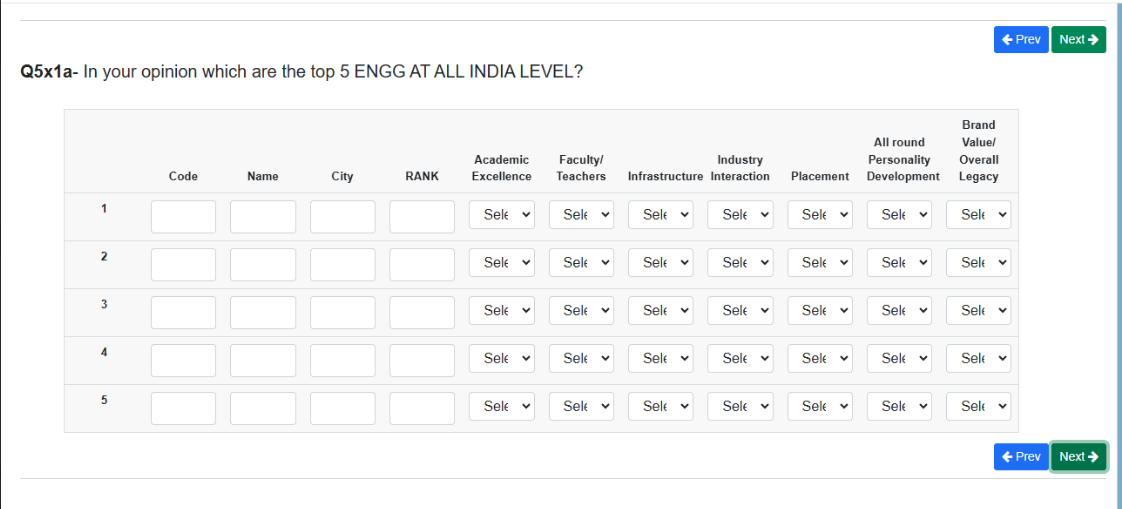

Ranking (Dropdown) using Matrix Dropdown

To implement a document ranking feature using dropdowns with conditional piping, follow these steps. This includes validation for proper rank sequences and logic to control the Next button behavior.

• AfterPiping Function: This detects changes from piped questions and updates the ranking dropdown dynamically.

   Copyif (queNumber == 'Q2') {
      manageRankDisplay(queNumber);
  }

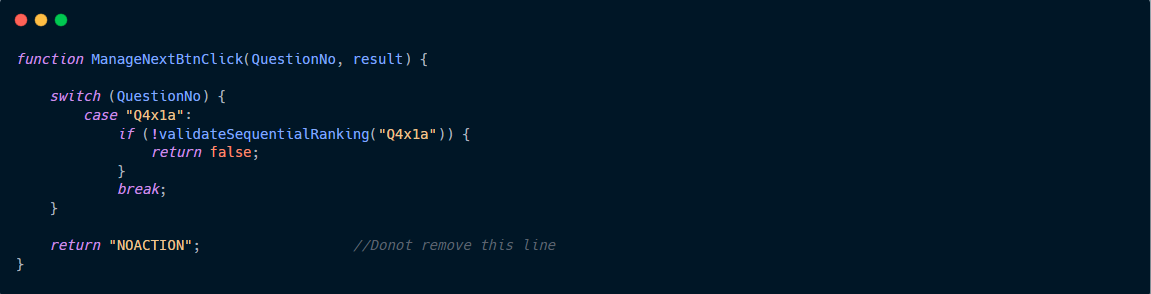

• validateRankSequence Function: This ensures that the selected ranks follow a valid sequence with no duplicates.
• ManageNextBtnClick Function: On "Next" button click, call validateRankSequence to validate ranking before continuing.

    Copyswitch (QuestionNo) {
      case "Q2":
          if (!validateRankSequence(QuestionNo)) {
              return false;
          }
          break;
  }

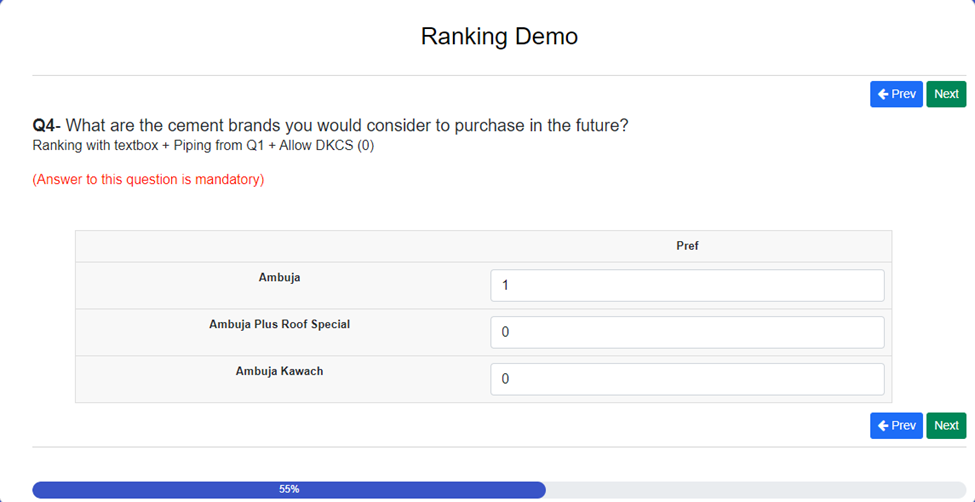

Ranking (Textbox) using Matrix Textbox

To implement a document ranking feature using a textbox with conditional piping and managing button clicks, follow these steps:

• manageRankDisplay Function: This function manages multiple input fields for ranking and applies validation logic based on the rank values. It dynamically sets the maximum rank (max) and adds the DKCS rank class if necessary.
• validateRankSequence Function: This function checks if the entered rankings are in a valid sequence.
  Example:

   Copyswitch (QuestionNo) {
      case "Q1":
          manageRankDisplay("Q4", 2, true);
          break;
  }

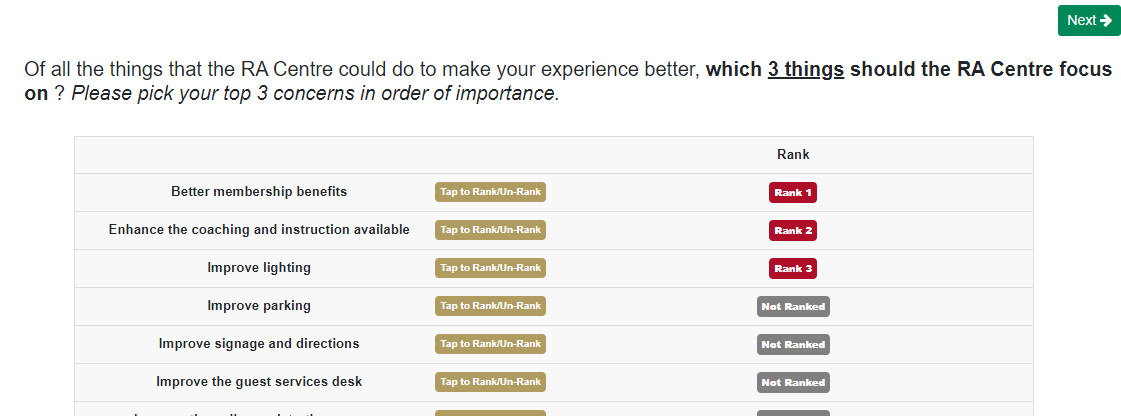

Ranking (Click) using Matrix Textbox

The clickRankHandler function facilitates a ranking system within a matrix textbox layout, allowing users to rank rows dynamically using a clickable interface.

Parameters:

• questionNumber (string): Identifier for the question table, used to dynamically target the table and associated elements.
• maxRank (number): Maximum number of ranks allowed for the question; this limit is enforced during ranking.

Usage:

 CopyclickRankHandler("Q26", 3);

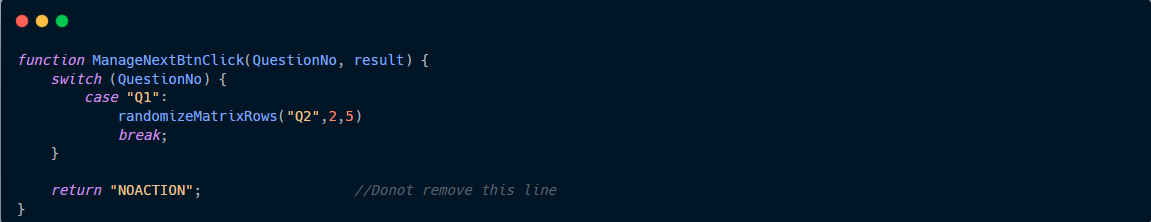

Randomize Matrix Row

The randomizeMatrixRows function is designed to randomize rows within a specified range for a matrix-type question in a survey. This enhances question variability and can prevent response biases by displaying options in a different order each time.

Call randomizeMatrixRows inside the ManageNextBtnClick function to apply row randomization before navigating to the next question.

Parameters:

• questionNumber (string): The unique identifier for the matrix question.
• minRow (number): The minimum row index to begin randomizing (1-based index).
• maxRow (number): The maximum row index to include in randomization.

Example:

 Copyswitch (QuestionNo) {
    case "Q1":
        randomizeMatrixRows("Q2", 2, 5);
        break;
}

Randomize Option

The randomizeOptionsPreserveOrder function randomizes the display order of options within a specific range for a given question. Options outside the specified range, or specific options to be excluded, are preserved in their original order. This is useful in scenarios where only part of a question’s options need to be randomized to add variation.

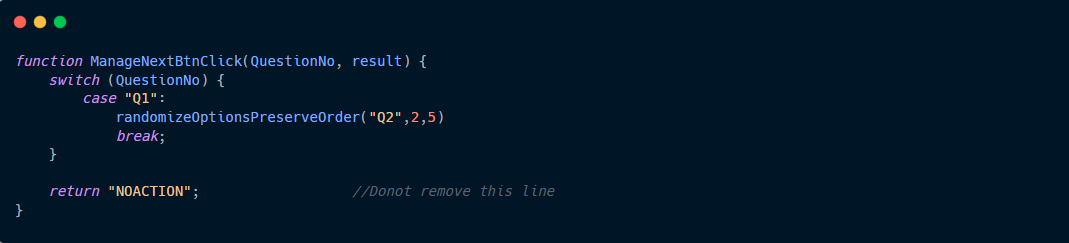

Call randomizeOptionsPreserveOrder inside the ManageNextBtnClick function to apply option randomization before navigating to the next question.

Parameters:

• questionNumber (string): The identifier for the question whose options are to be randomized.
• minOption (number): The minimum index of options to include in randomization (1-based index).
• maxOption (number): The maximum index of options to include in randomization.

Example:

 Copyswitch (QuestionNo) {
    case "Q1":
        randomizeOptionsPreserveOrder("Q2", 2, 5);
        break;
}

Randomize Question

The RandomizeQuestionSet function is used to randomize the order of survey questions between a specified starting and ending question. This ensures that questions within the defined range appear in a different order each time the survey is loaded, while maintaining logical flow and navigation integrity.

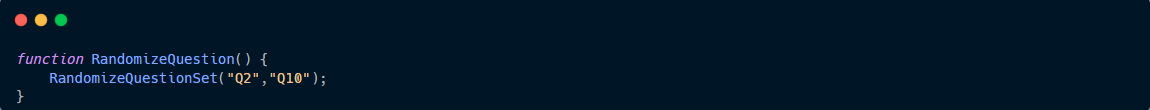

Call RandomizeQuestionSet inside your RandomizeQuestion function to apply the randomization before the survey is rendered.

Parameters:

• startQuestionNo (string): The unique identifier of the first question in the range to be randomized.
• endQuestionNo (string): The unique identifier of the last question in the range to be randomized.

Example:

   CopyRandomizeQuestionSet("Q2", "Q10");

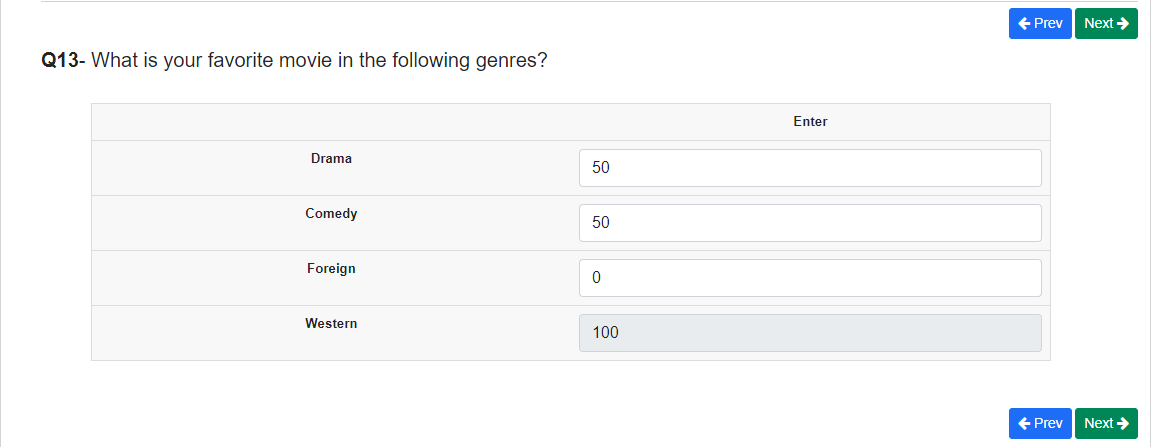

Sum Column Value and Set in Last Row using Matrix Textbox

The calculateColumnTotal function is used in matrix-style questions to automatically compute the sum of values in a specific column and display the result in the last row of that column. The input field in the last row is disabled to prevent manual edits and ensure data consistency.

Call the function calculateColumnTotal inside your initialization function to enable real-time calculation and display of totals.

Parameters:

• questionNo (string): The unique identifier for the matrix question (e.g., "1", "Q2"). Used to select the correct table (e.g., #tbl1, #tblQ2).
• columnNumber (number): The column index to calculate the total for. This corresponds to the colname attribute in the table’s input cells.

Example:

  CopycalculateColumnTotal("Q13", 1);

Validate Column Sum Equals 100

The validateColumnSumEquals100 function ensures that the sum of input values in specific columns of a matrix-style table equals exactly 100. If any specified column’s total is not 100, an error message is displayed and the function returns false, preventing progression.

Call validateColumnSumEquals100 inside the ManageNextBtnClick function to enforce validation before moving to the next question.

Parameters:

• questionNumber (string): Unique identifier for the matrix question (e.g., "1", "Q2"). Used to locate the corresponding table (e.g., #tbl1 or #tblQ2).
• colNames (string): Comma-separated list of column names (e.g., "1,2,3") to validate. These match the colname attribute in table cells.

Example:

 Copyswitch (QuestionNo) {
    case "Q13":
        if (!validateColumnSumEquals100("Q13", "1")) {
            return;
        }
        break;
}

Get an Answer by Step ID

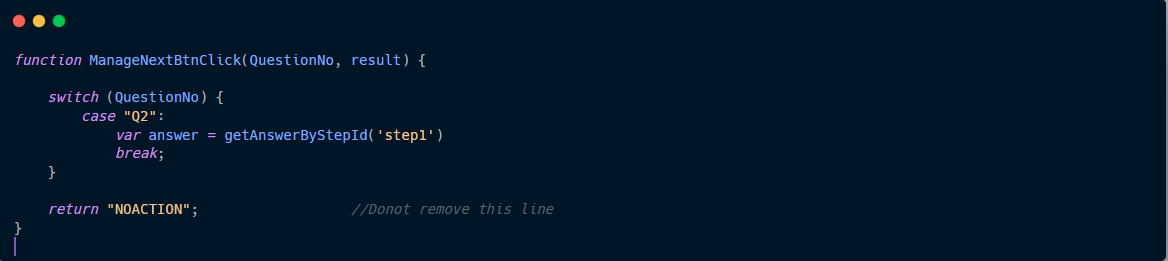

The getAnswerByStepId function retrieves the value of the answer attribute from a specific <div> element identified by its stepId. This is particularly useful for dynamically accessing responses in a multi-step form or survey where each step is encapsulated within a .step-pane div.

Parameters:

• stepId (string): The ID of the div.step-pane element from which the answer attribute value should be fetched.

Return Value:

Returns the value of the answer attribute from the specified div.step-pane element.

Example:

CopygetAnswerByStepId("step1");

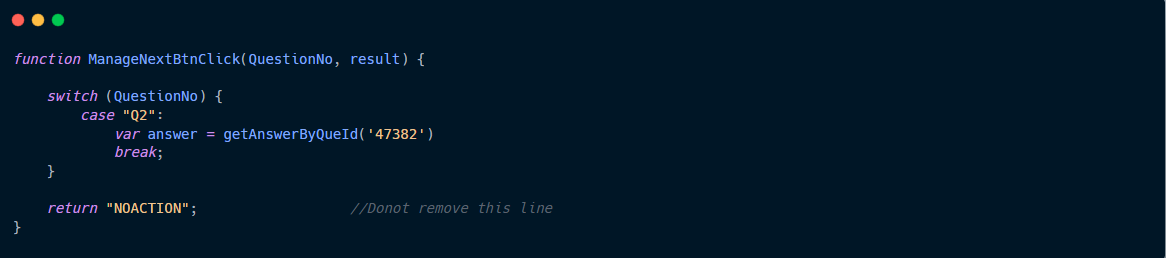

Get an Answer by Question ID

The getAnswerByQueId function retrieves the value of the answer attribute from a <div> element identified by its queid. This function is useful for accessing answer values dynamically in form or survey applications where each question is uniquely referenced by a question ID.

Parameters:

• queid (string): The queid attribute of the div.step-pane element from which the answer needs to be fetched.

Return Value:

Returns the value of the answer attribute from the specified div.step-pane element.

Example:

CopygetAnswerByQueId("47382");

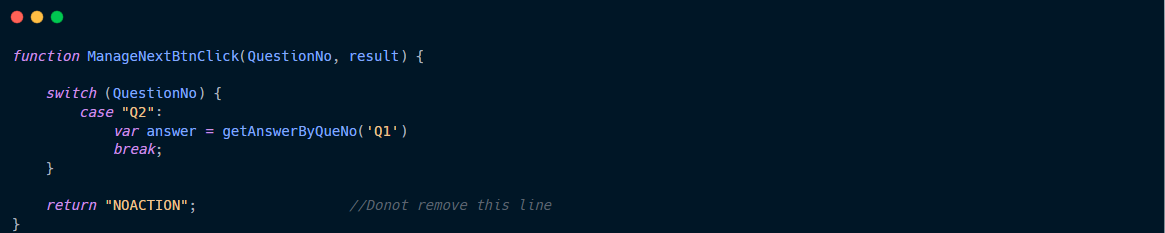

Get an Answer by Question Number

The getAnswerByQueNo function retrieves the value of the answer attribute from a <div> element identified by its qno. This is particularly useful in form or survey applications where responses are tracked and referenced using question numbers.

Parameters:

• qno (string): The qno attribute of the div.step-pane element from which the answer value should be retrieved.

Return Value:

Returns the value of the answer attribute from the targeted div.step-pane element.

Example:

CopygetAnswerByQueNo("Q1");

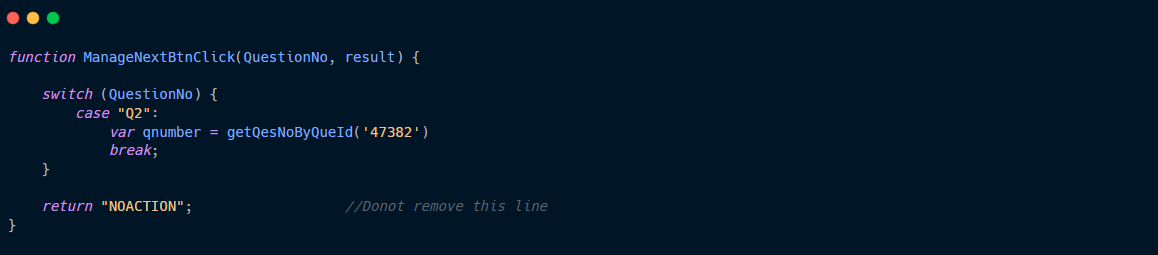

Get Question Number by Question ID

The getQesNoByQueId function retrieves the value of the qno attribute from a <div> element identified by its queid. This is especially useful when mapping unique question IDs to their respective question numbers in dynamic survey flows.

Parameters:

• queid (String | Number): The queid attribute of the div.step-pane element whose qno needs to be retrieved. If passed as a string, it is automatically converted to a number.

Return Value:

Returns the value of the qno attribute from the targeted div.step-pane element.

Example:

CopygetQesNoByQueId("47382");

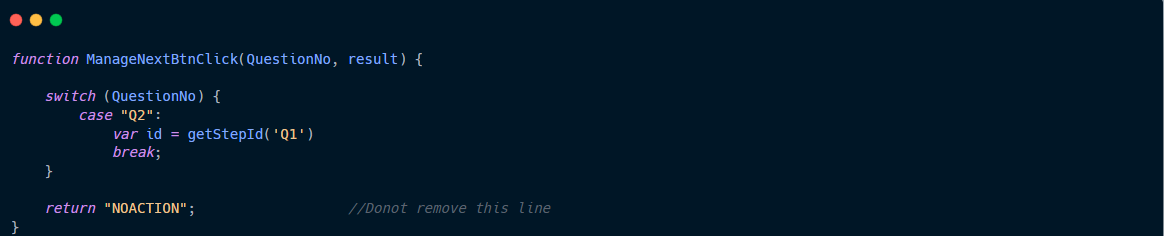

Get Step ID by Question Number

The getStepId function retrieves the id attribute of a <div class="step-pane"> element identified by its qno (question number). This is particularly useful for managing survey step transitions or navigating to a specific question.

Parameters:

• questionNo (String): The qno attribute of the div.step-pane element from which the id value is to be retrieved.

Return Value:

Returns the id of the matched div.step-pane element.

Example:

CopygetStepId("Q1");

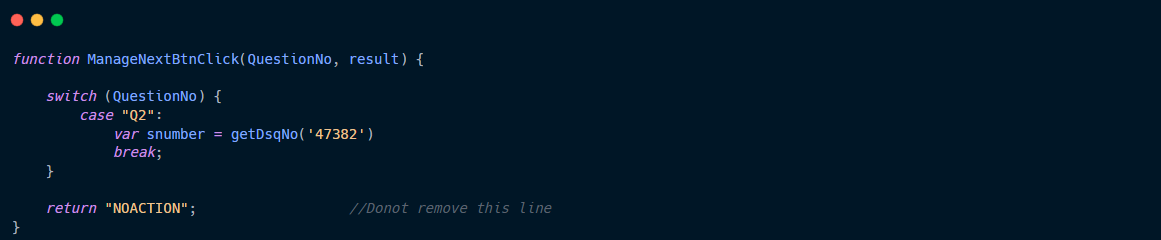

Get Display Sequence Number by Target ID

The getDsqNo function retrieves the sequence number (dsq) from a div.step-pane element, identified by the question number (qno). The qno is obtained based on the provided tgtId using the getQesNoByTgtId function. This function is useful for dynamically fetching a display sequence number associated with a specific question in a survey or form.

Parameters:

• tgtId (String | Number): The target ID used to look up the corresponding question number (qno) and retrieve the dsq attribute value.

Return Value:

Returns the value of the dsq attribute from the div.step-pane element with the matching qno.

Example:

CopygetDsqNo('47382');

Get Timer Value by Target ID

The getdtimer function retrieves the value of the dtimer attribute from a div.step-pane element, identified by the question number (qno), which is determined based on the provided tgtId. This function is useful for dynamically fetching the timer value (dtimer) for a specific question within a survey or form.

Parameters:

• tgtId (String | Number): The target ID used to find the corresponding question number (qno) and retrieve the dtimer attribute value. This ID is passed to the getQesNoByTgtId function to locate the relevant qno.

Return Value:

The value of the dtimer attribute from the div.step-pane element matching the given qno.

Example:

Copygetdtimer('47382');

Get Answer Type by Question Number

The getAnswerType function retrieves the answertype attribute value from a specific element associated with a given question number (qno). The function first attempts to find the answertype from a table-custom element (typically used for matrix-style questions) and, if not found, falls back to searching within an elem-group element (commonly for text box-style questions). This function is useful for dynamically determining the answer type of a question in a form or survey application.

Parameters:

• questionNo (String | Number): The question number (qno) used to locate the specific question element in the DOM and retrieve the answertype attribute.

Return Value:

The value of the answertype attribute from the identified question element.

Example:

CopygetAnswerType('Q1');

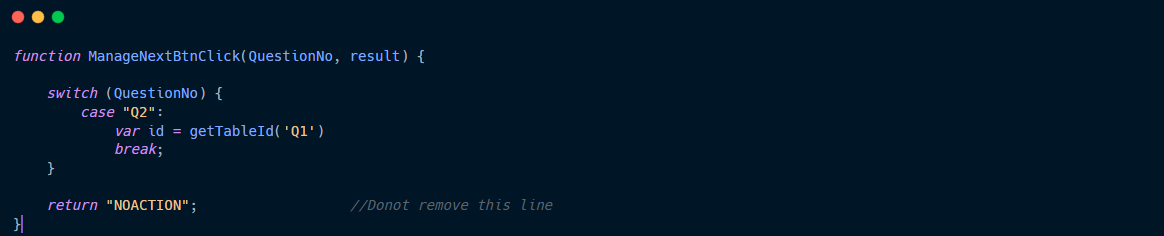

Get Table ID by Question Number

The getTableId function retrieves the id attribute of a table element associated with a specific question number (qno). This function is useful for dynamically fetching the table ID of matrix-style questions or any table-based elements within a form or survey application.

Parameters:

• questionNo (String | Number): The question number (qno) used to locate the specific question element in the DOM and retrieve the id attribute of the associated table.

Return Value:

The id attribute of the table element associated with the specified question number.

Example:

CopygetTableId('Q1');

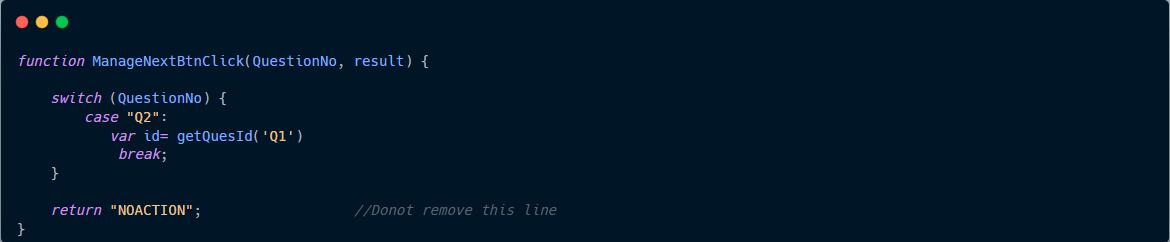

Get Question ID by Question Number

The getQuesId function retrieves the queid attribute from the question element associated with a specific question number (qno). This function is useful for dynamically fetching the question ID in a form or survey application where questions are identified by question numbers.

Parameters:

• questionNo (String | Number): The question number (qno) used to locate the specific question element in the DOM and retrieve the queid attribute.

Return Value:

The queid attribute value of the question element associated with the specified question number.

Example:

CopygetQuesId('Q1');

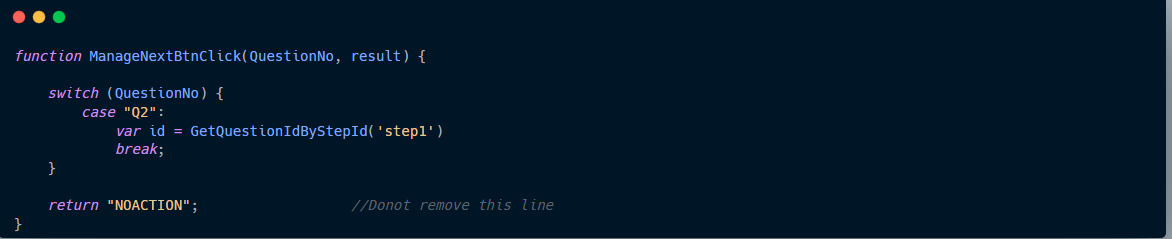

Get Question ID by Step ID

The GetQuestionIdByStepId function retrieves the queid attribute of a specific question element by using the provided StepId. This function is useful when working with dynamic forms or surveys, especially when you need to access the question ID for a particular step in the process.

Parameters:

• StepId (String): The ID of the step (typically a div element) for which the queid attribute needs to be retrieved.

Return Value:

The queid attribute value of the element with the specified StepId.

Example:

CopyGetQuestionIdByStepId('step1');

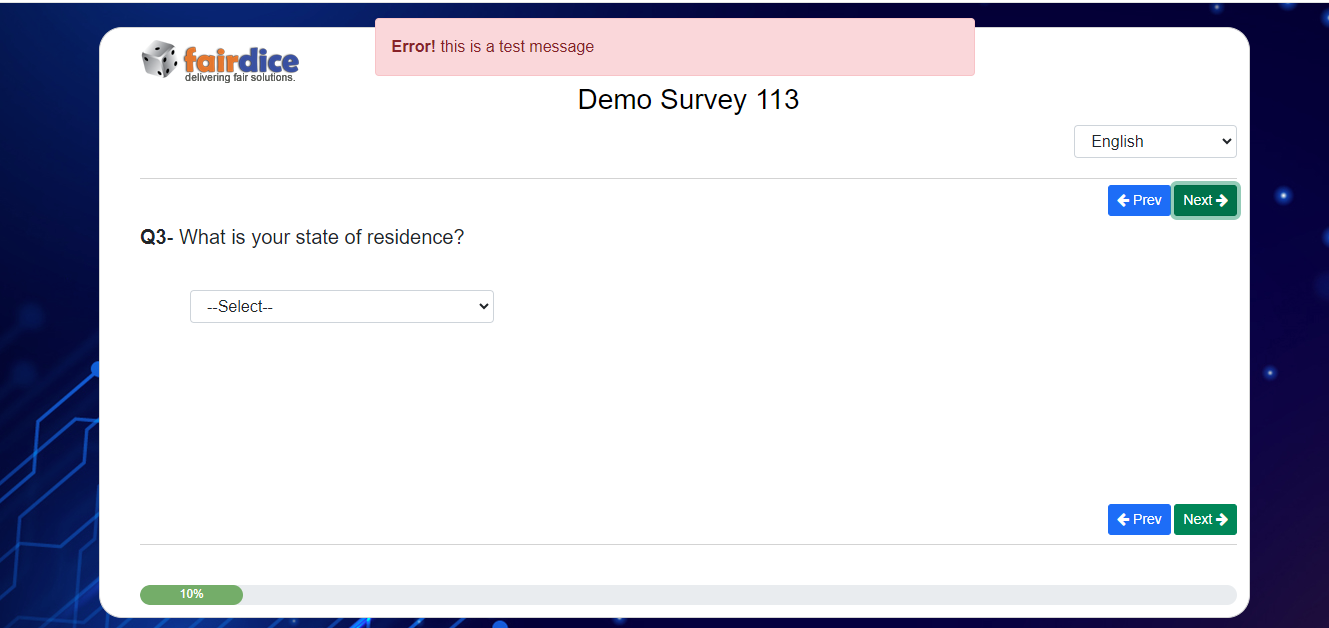

Display Error Message with Bootstrap Alert

The errorMessage function displays an error message using a Bootstrap-styled alert. This function can be used to show error notifications or validation messages in a user-friendly manner, utilizing Bootstrap's alert components.

Parameters:

• msg (String): The error message that will be displayed in the alert.

Return Value:

This function does not return any value. It simply triggers the display of an error message using a Bootstrap alert.

Example:

CopyerrorMessage('this is test message');

Get Selected Options by Question Number

The getSelectedOptionsByQuestion function retrieves the selected radio or checkbox options for a specific question identified by its question number (questionNumber). It returns the values and corresponding texts of the selected options within the question. This function is useful for collecting user input in forms or surveys.

Parameters:

• questionNumber (String | Number): The question number (data-qno attribute) used to locate the question container and find the selected options.

Return Value:

Type: Object
Description: The function returns an object with the following structure:

• selected (Boolean): true if one or more options are selected, false if none.
• values (Array): Values of the selected options.
• texts (Array): Text labels corresponding to each selected option, fetched from the closest label with the class .clsOptionText.

Example:

CopygetSelectedOptionsByQuestion('Q1')

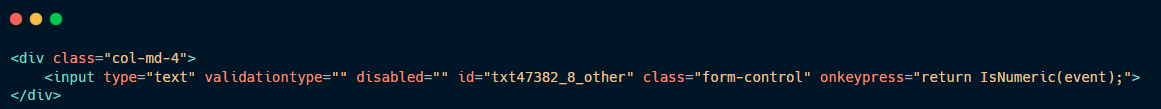

Check if Input is Numeric on Keypress

The IsNumeric function is typically used in the onkeypress event handler to ensure that the user can only enter numeric characters (digits 0-9) in a specific input field. This helps restrict input to numeric values by preventing any non-numeric characters from being entered.

Example Usage:

Copy<input type="text" onkeypress="return IsNumeric(event);" />

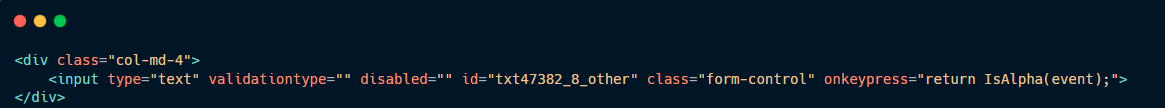

Check if Input is Alphabetical on Keypress

The IsAlpha function is commonly used in the onkeypress event handler to ensure that only alphabetic characters (letters) are entered in a specific input field. This restricts input to letters (both uppercase and lowercase), preventing non-alphabetical characters from being typed.

Example Usage:

Copy<input type="text" onkeypress="return IsAlpha(event);" />

Get Matrix Row Values

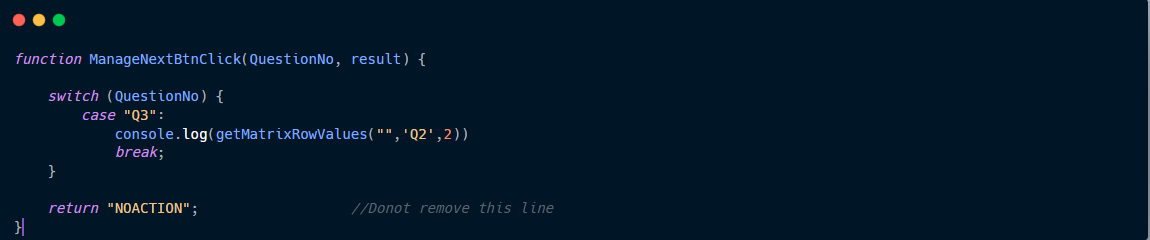

The getMatrixRowValues function retrieves specific row values from a matrix answer based on the question number and row number. This function supports multiple matrix types, including textboxes, dropdowns, single answer (radio buttons), and multiple answer (checkboxes), dynamically parsing and filtering the data accordingly.

Parameters

• result (String): The answer data. If empty, the function fetches the answer using getAnswerByQueNo.
• questionNo (Number): The question number associated with the matrix.
• rowNumber (Number): The row number for which values are required.

Return Value

Type: Array

Returns an array of values or key-value pairs depending on the matrix type:

• For textboxes and dropdowns: Key-value pairs of column numbers and values.
• For single answer matrices: A list of selected values.
• For multiple answer matrices: An array of selected values per row.

Example

CopygetMatrixRowValues("", 'Q2', 2)

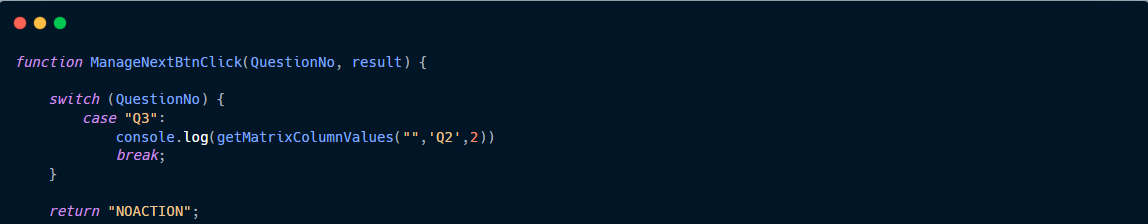

Get Matrix Column Values

The getMatrixColumnValues function extracts specific column values from a matrix answer based on the question number and column number. It supports various matrix types such as textboxes, dropdowns, single answer (radio buttons), and multiple answer (checkboxes), parsing and filtering the answer data accordingly.

Parameters

• result (String): The answer data. If empty, the function fetches the answer using getAnswerByQueNo.
• questionNo (Number): The question number associated with the matrix.
• columnNumber (Number): The column number for which values are required.

Return Value

Type: Array

Returns an array of values or key-value pairs based on the matrix type:

• For textboxes and dropdowns: Key-value pairs of row numbers and values.
• For single answer matrices: A list of selected rows for the column.
• For multiple answer matrices: An array of selected rows for the column.

Example

CopygetMatrixColumnValues("", 'Q2', 2)

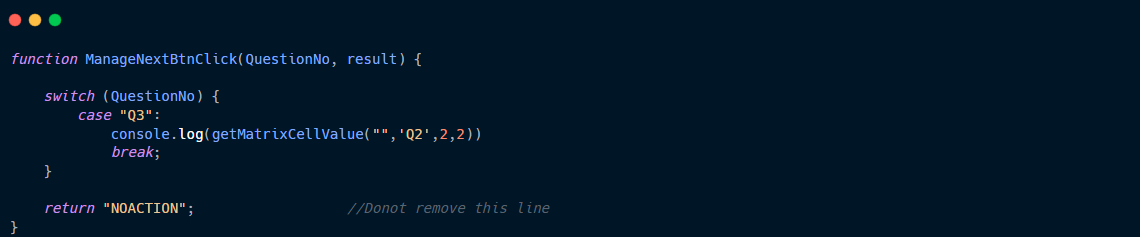

Retrieve Matrix Cell Value

The getMatrixCellValue function extracts the value from a specific cell in a matrix-style question's response based on the provided row and column numbers. This is useful for accessing precise data points in matrix questions stored in a structured format.

Parameters

• result (String): The answer string containing the matrix values. If empty, the function fetches the answer dynamically.
• questionNo (Number): The question number to which the matrix belongs.
• rowNumber (Number): The row number of the cell to retrieve.
• columnNumber (Number): The column number of the cell to retrieve.

Return Value

String: The value of the matrix cell at the specified row and column.

Example

CopygetMatrixCellValue("", 'Q2', 2, 2)

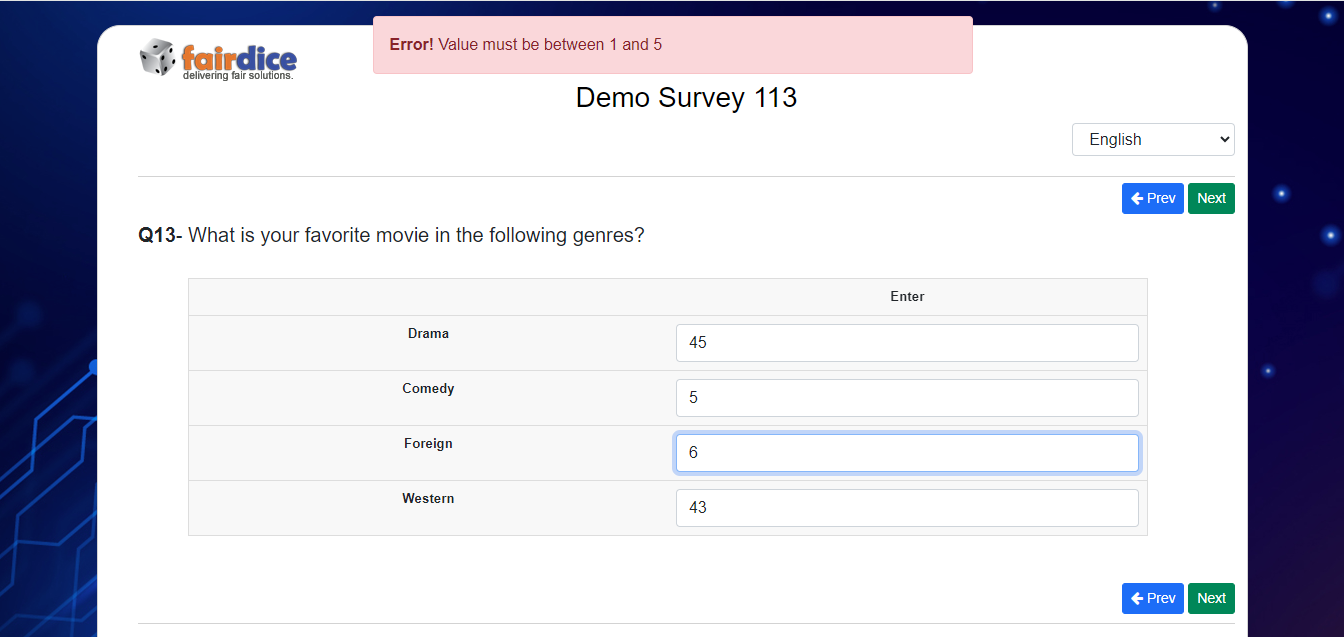

Validate Matrix Input Rows

The validateMatrixInputRows function validates the input data for all visible rows within a matrix-style question. It verifies that each visible row contains at least one valid input, marks invalid rows with a specific CSS class, and returns a validation result.

Parameters

• questionNo (Number): The question number identifying the matrix question. This is used to locate the matrix table in the DOM.

Return Value

Boolean: Returns true if all visible rows are valid; false if any visible row is invalid.

Example

Copy
if (!validateMatrixInputRows('Q13')) {
    return false;
}

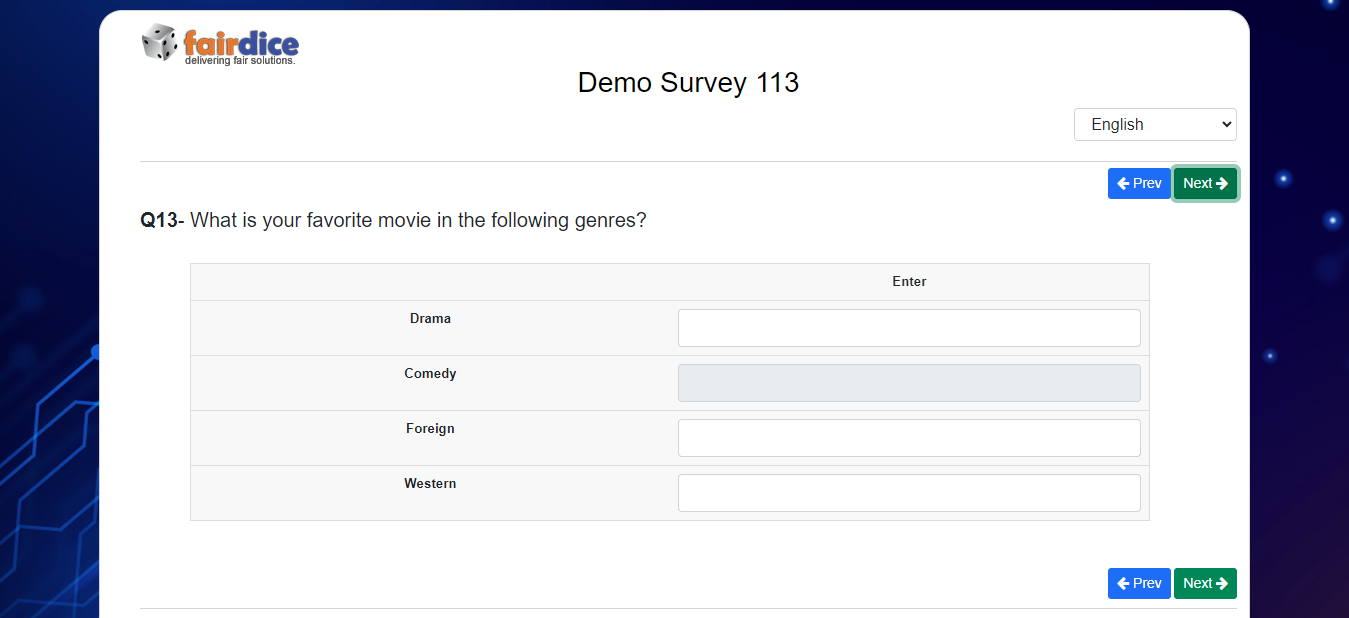

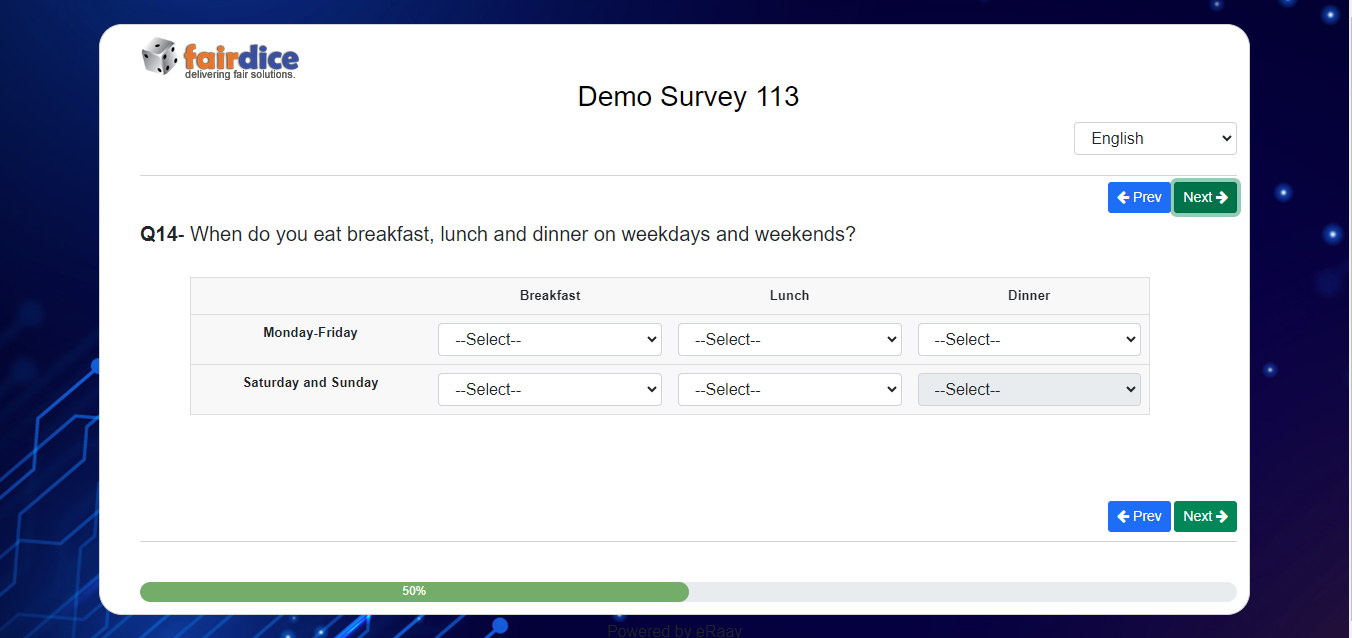

Enable/Disable Column

The enableDisableColumn function enables or disables specified columns in a matrix-style table associated with a given question number. When disabling, the function clears any input values in the targeted columns and applies styles to visually indicate the disabled state.

Parameters

• questionNo (String): The question number identifying the matrix table (used to locate the table by its ID).
• colNumbers (String): Comma-separated column numbers to enable or disable (e.g., "1,3,5").
• isDisable (Boolean): Flag to disable (true) or enable (false) the specified columns.

Example

Copy
enableDisableColumn('Q13', '1,3', true);  // Disables columns 1 and 3 in matrix question Q13
enableDisableColumn('Q13', '2', false);   // Enables column 2 in matrix question Q13

Enable/Disable Row

The enableDisableRow function enables or disables specified rows in a matrix-style question’s table. It affects all input elements (such as input, select) inside the targeted rows, making them interactive or read-only according to the flag.

Parameters

• questionNo (String): The question number to identify the matrix table by its ID.
• rowNumbers (String): Comma-separated list of row numbers to enable or disable (e.g., "1,3,5").
• isDisable (Boolean): Set to true to disable the rows, or false to enable them.

Example

Copy
enableDisableRow('Q13', '2,4', true);  // Disables rows 2 and 4 in matrix question Q13
enableDisableRow('Q13', '1', false);   // Enables row 1 in matrix question Q13

Enable/Disable Cell

The enableDisableCell function enables or disables input elements in specific cells of a matrix-style question’s table. It targets the cells by their row and column numbers, allowing fine-grained control over user interaction within the matrix.

Parameters

• questionNo (String): The question number to identify the matrix table by its ID.
• rowNumber (String): The row number where the target cells reside.
• colNumbers (String): Comma-separated list of column numbers specifying which cells to enable or disable (e.g., "1,3,5").
• isDisable (Boolean): Set to true to disable the specified cells, or false to enable them.

Example

Copy
enableDisableCell('Q14', 2, '3', true);   // Disables the cell at row 2, column 3 of matrix Q14
enableDisableCell('Q14', 1, '1,4', false); // Enables cells at row 1, columns 1 and 4 in matrix Q14

Get Matrix Input Values

The getAllMatrixInputValues function retrieves values from a matrix table based on the provided question number, and optionally filters by row and/or column. It supports input fields for answertype 10, 11, and 12 (using <input class="dataval">), and dropdowns for answertype 21 (using <select>).

Parameters

• questionNo (String): Required. The question number used to locate the matrix table (e.g., tblQ13).
• rowNo (String, optional): Row identifier to filter results by a specific row.
• colNo (String, optional): Column identifier to filter results by a specific column.

Return Value

The return type depends on the parameters:

• If only questionNo is passed: returns an array of objects for all rows and columns.
• If questionNo + rowNo or colNo: returns an array of matching cells.
• If questionNo + rowNo + colNo: returns a single value (string) for that cell.
• Returns an empty array if answertype is not one of 10, 11, 12, or 21.

Examples

Copy
// Get all values from Q14
const allValues = getAllMatrixInputValues('Q14');
// [
//   { rowname: "1", colname: "1", value: "2" },
//   { rowname: "2", colname: "1", value: "4" }
// ]

// Get values from row "2" of Q14
const rowValues = getAllMatrixInputValues('Q14', '2');
// [
//   { rowname: "2", colname: "1", value: "4" }
// ]

// Get values from column "1" of Q14
const colValues = getAllMatrixInputValues('Q14', null, '1');
// [
//   { rowname: "1", colname: "1", value: "2" },
//   { rowname: "2", colname: "1", value: "4" }
// ]

// Get value from row "3", column "1" of Q14
const cellValue = getAllMatrixInputValues('Q14', '3', '1');
// "Op3"

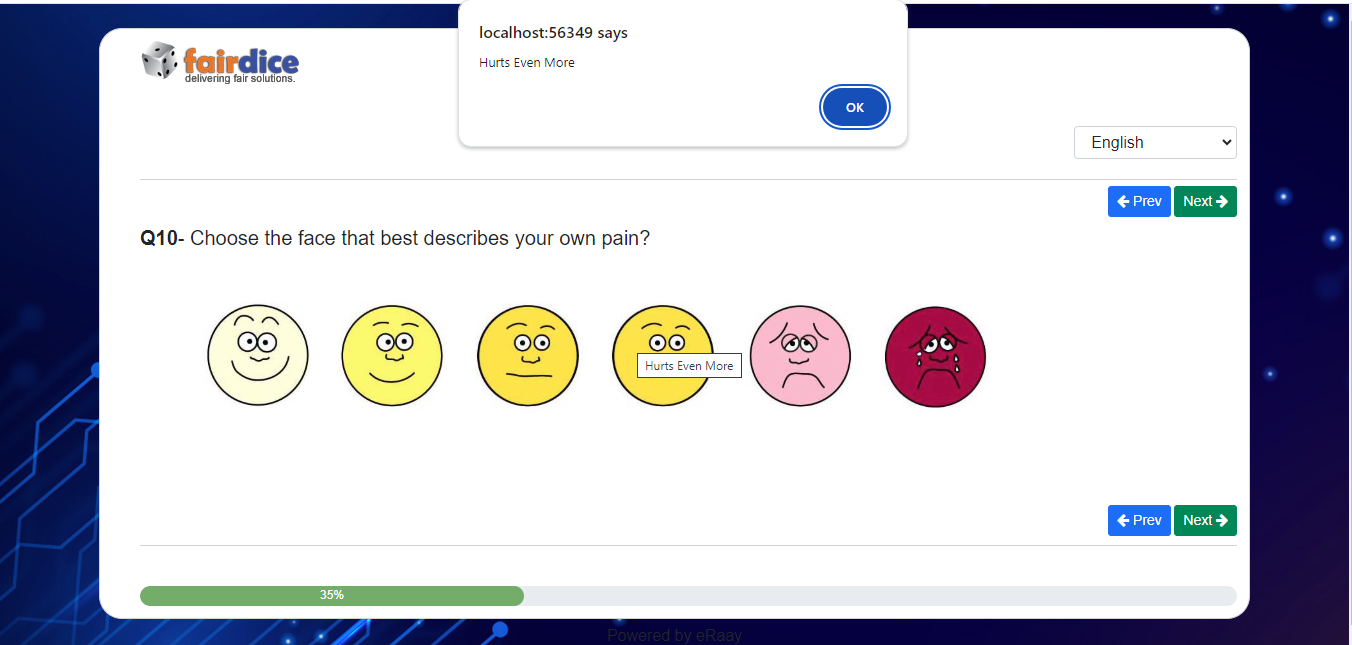

Get Selected Image Title

The getSelectedImageTitle function retrieves the title attribute of the image linked to the selected radio button for a specified question. It helps capture the user's image selection in surveys or forms.

Parameters

• questionNumber (String): The question number to identify the related set of radio buttons.

Return Value

• Type: String
• Description: Returns the title of the selected image. Returns "Na" if no radio button is selected, or "No title found" if the selected image has no title attribute.

Example

Copy
const title = getSelectedImageTitle('Q10');
console.log(title); // Outputs the selected image title or fallback message

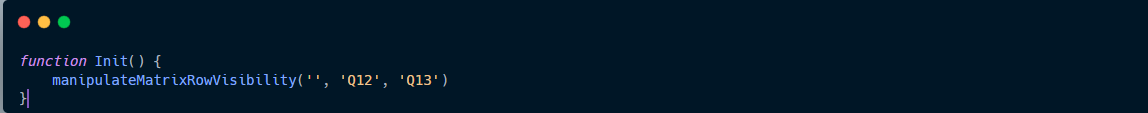

Dynamic Matrix Row Visibility Control

The manipulateMatrixRowVisibility function controls the visibility of rows in a matrix-style table based on the answer given for another question. It compares answer types of two questions (QuestionNo1 and questionNo2) and shows or hides rows in the second matrix accordingly.

Parameters

• result (String or undefined): The answer value from QuestionNo1. If empty, the function may fetch this value internally.
• QuestionNo1 (String): The question number of the first question from which the answer value is taken.
• questionNo2 (String): The question number of the second matrix where row visibility will be manipulated.

Return Value

• Type: Boolean (optional)
• Description: Returns false if the answer types do not satisfy the conditions; otherwise, no explicit return (or undefined).

Example

Copy
manipulateMatrixRowVisibility('', 'Q12', 'Q13');

Numeric Validation for Matrix Columns

The initMatrixColNumericValidation function enforces numeric validation on specified columns of a matrix table. It ensures inputs are numeric and within a specified range (minimum to maximum). If users input non-numeric or out-of-range values, an error message is displayed. The validation uses onkeypress to restrict characters to numeric ones and dynamically validates the input on change.

Parameters

• questionNo (String): Identifier for the matrix question.
• columns (String): Comma-separated list of column numbers where validation applies.
• min (Number): Minimum allowed input value.
• max (Number): Maximum allowed input value.

Return Value

• None: The function modifies input fields to apply validation but does not return a value.

Example

Copy
initMatrixColNumericValidation('Q13', '1', 1, 5);

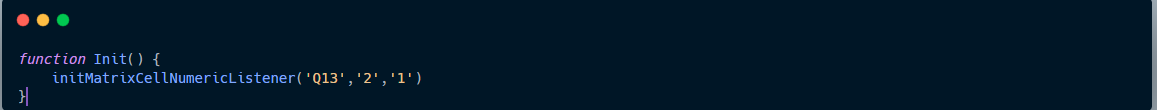

Numeric Listener for Matrix Cells

The initMatrixCellNumericListener function attaches numeric validation listeners to specified cells within a matrix-style table. It restricts user input to numeric characters only by setting onkeypress handlers that call an IsNumeric function for validation.

Parameters

• questionNo (String): Identifier for the matrix question.
• rowNames (String): Comma-separated list of row names where the numeric listener applies.
• columns (String): Comma-separated list of column names where the numeric listener applies.

Return Value

• None: The function modifies the input fields in the specified cells to allow numeric input only.

Example

Copy
initMatrixCellNumericListener('Q13', '2', '1');

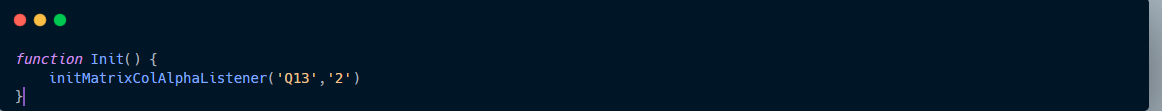

Alpha Listener for Matrix Columns

The initMatrixColAlphaListener function adds an alphabetical validation listener to specified columns in a matrix-style table. It ensures that only alphabetic characters (letters) can be entered in the input fields of those columns by attaching an onkeypress event handler that calls the IsAlpha function.

Parameters

• questionNo (String): The identifier for the matrix question.
• columns (String): Comma-separated list of column numbers where the alpha listener should be applied.

Return Value

• None: The function modifies input fields in the specified columns to accept only alphabetic input.

Example

Copy
initMatrixColAlphaListener('Q13', '2');

Phone Number Validation for Matrix Cells

The initMatrixCellTelephoneValidation function applies phone number validation to specific cells in a matrix-style table. It restricts input to numeric characters only, validates that the input matches a valid phone number format, and enforces a maximum length of 10 characters for the phone number field.

Parameters

• questionNo (String): The identifier for the matrix question.
• rowNames (String): Comma-separated list of row names where phone validation should be applied.
• columns (String): Comma-separated list of column names where phone validation should be applied.

Return Value

• None: The function modifies the input fields in specified cells to enforce phone number validation.

Example

Copy
initMatrixCellTelephoneValidation('Q13', '2', '1');

Customization of Matrix Question Input Field

The customizeMatrixQuestion function allows customization of a specific column within a matrix-style question by inserting additional HTML elements after the corresponding input fields. It supports associating different input types such as dropdowns, checkboxes, radio buttons, and textboxes with the matrix input fields.

Parameters

• questionNo (String): The identifier for the matrix question.
• column (String | Number): The column number or identifier where customization is applied.
• element (String): The HTML string of the element to insert after the input fields (e.g., dropdown, checkbox, radio button, textbox, etc.).

Return Value

• None: The function modifies the specified column by appending the given HTML element after the corresponding input fields.

Example

Copy
var dropdownHTML = '<select id="dropdownnnn" class="form-control">' +
    '<option value="0">Select</option>' +
    '<option value="1">Rank 1</option>' +
    '<option value="2">Rank 2</option>' +
    '<option value="3">Rank 3</option>' +
    '<option value="4">Rank 4</option>' +
    '<option value="5">Rank 5</option>' +
    '<option value="6">Rank 6</option>' +
    '<option value="7">Rank 7</option>' +
    '<option value="8">Rank 8</option>' +
    '<option value="9">Rank 9</option>' +
    '</select>';

customizeMatrixQuestion("Q13", 1, dropdownHTML);

Customization of Matrix Question in Specific Cell

• Cell Styling: Customize specific cell appearance.
• Logic: Apply cell-specific validation.

The customizeMatrixQuestioninCell function allows for the customization of a specific cell within a matrix-style question by inserting an HTML element after the input field in the specified row and column. This function targets a single cell, unlike customizeMatrixQuestion, which applies changes to an entire column.

Parameters

• questionNo (String): The identifier for the matrix question.
• rowname (String | Number): The row name or identifier where customization will be applied.
• column (String | Number): The column number or identifier where customization will be applied.
• element (String): The HTML element to insert after the matrix input field (e.g., dropdown, checkbox, radio button, textbox, etc.).

Return Value

• None: The function modifies the specified cell by appending the given HTML element after the corresponding input field within the row and column.

Example

Copy
var dropdownHTML = '<select id="dropdownnnn" class="form-control">' +
    '<option value="0">Select</option>' +
    '<option value="1">Rank 1</option>' +
    '<option value="2">Rank 2</option>' +
    '<option value="3">Rank 3</option>' +
    '<option value="4">Rank 4</option>' +
    '<option value="5">Rank 5</option>' +
    '<option value="6">Rank 6</option>' +
    '<option value="7">Rank 7</option>' +
    '<option value="8">Rank 8</option>' +
    '<option value="9">Rank 9</option>' +
    '</select>';

customizeMatrixQuestioninCell("Q13", 2, 1, dropdownHTML);

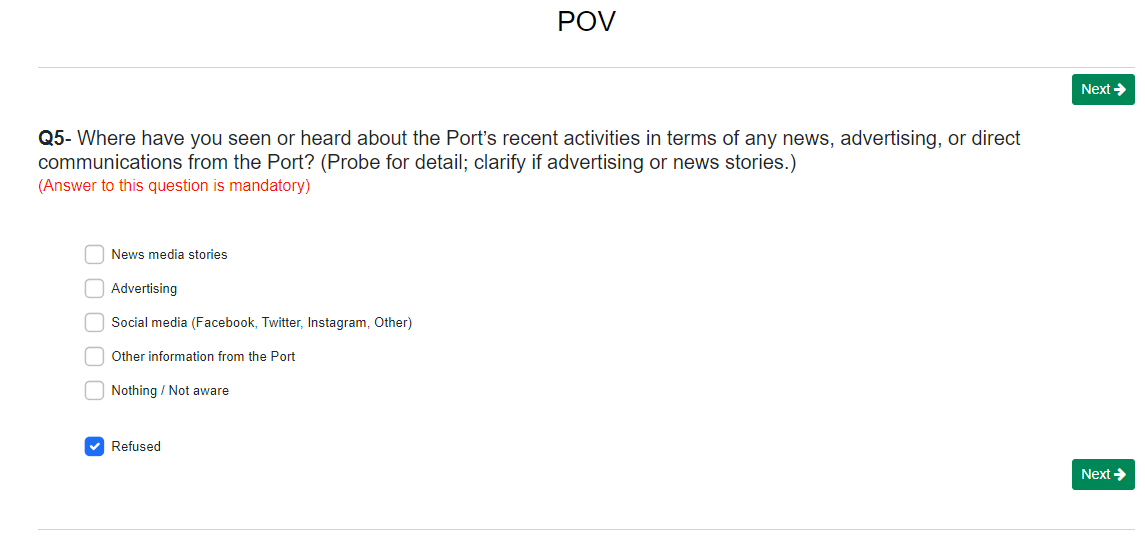

Update Checkbox Options to "NOTA" (None of the Above)

The updateOptionToNota function updates the styling and behavior of specific checkbox options for a given question. It ensures that the specified checkboxes act as "None of the Above" (NOTA) options by applying the correct class, removing any previous change handlers, and binding new behavior to make them mutually exclusive with other checkboxes.

Parameters

• questionNumber (Number | String): The identifier for the question (e.g., "Q5").
• optionValues (String | Array): A comma-separated string (e.g., "1,2,3") or an array of option values representing the NOTA checkboxes.

Return Value

• None: This function does not return a value. It updates the DOM elements and logs errors if invalid input is given.

Function Behavior

• Updates the parent container’s CSS class for the specified checkbox options.
• Removes existing onchange attributes from the checkboxes.
• Attaches a new onchange event handler: UncheckAllOtherCheckbox(this).
• Adds the class Nota to the checkbox inputs for identification.

Example

Copy
// Set option 4 of question Q5 as a NOTA checkbox
updateOptionToNota("Q5", "4");

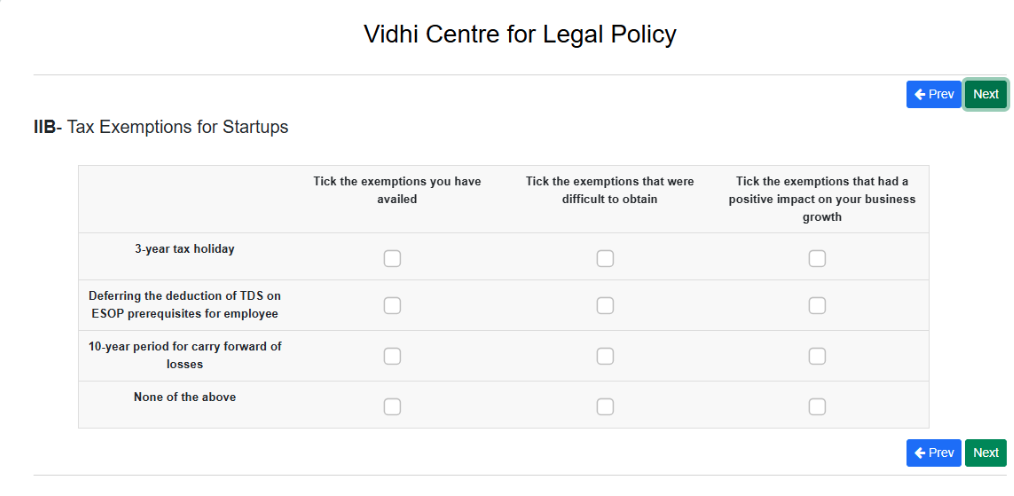

Validate Checkbox Mutual Exclusivity

The validateCheckboxMutualExclusivity function enforces mutual exclusivity rules within a matrix question's column. If a special checkbox (like "None of the Above") is selected, all other checkboxes in that column are automatically unchecked. Conversely, selecting any other checkbox will uncheck the special one.

Parameters

• questionNumber (Number | String): The unique identifier for the matrix question (e.g., "I" or "Q7").
• columnNumber (Number): The column index where the checkboxes are located.
• specialValue (Number, optional): The row value considered special (e.g., 999 for NOTA). Defaults to 999.

Return Value

• void: This function does not return a value. It adjusts the checked state of checkboxes based on selection logic.

Function Behavior

• Attaches a change event listener to each checkbox in the specified question and column.
• If the special checkbox (like NOTA) is selected, it unchecks all others in the column.
• If any other checkbox is selected, it unchecks the special checkbox.
• Useful for ensuring mutual exclusivity in matrix-style checkbox questions.

Example

Copy
// Enforce mutual exclusivity for question I, column 1, using 999 as the NOTA row value
validateCheckboxMutualExclusivity('I', 1);

Validate Checkbox Selection Count

The validateCheckboxSelectionCount function ensures that users select at least a specified number of checkboxes in a given column of a matrix-style question. It optionally accounts for a special checkbox (e.g., "None of the Above") and skips validation if that is selected.

Parameters

• questionNumber (Number | String): The unique identifier for the question (e.g., "I" or "Q4").
• columnNumber (Number): The column number in the matrix where validation should apply.
• minCheckBox (Number): Minimum number of checkboxes that must be selected to pass validation.
• specialValue (Number, optional): A special row value (like 999 for NOTA) that bypasses selection count when checked. Defaults to 999.

Return Value

• Boolean: Returns true if the selection meets the minimum required count, otherwise false.

Function Behavior

• Counts the number of checked checkboxes in the specified column.
• If the special checkbox is not selected, enforces that the minimum number of checkboxes are checked.
• Displays an error message if the requirement is not met.

Example

Copy
// Validate that exactly 1 checkbox is selected in question 'I', column 4
switch (QuestionNo) {
    case "Q4":
        var isValidCol4 = validateCheckboxSelectionCount('I', 4, 1);
        if (!isValidCol4) {
            return false;
        }
        break;
}

Validate and Map Code Inputs Based on External Data

The validateCodeMapping function dynamically validates an entered code against an external JSON dataset and populates related fields if a valid match is found. This is useful for code-to-name mappings, such as mapping institute codes to names and cities.

Parameters

• questionNo (Number | String): Identifier for the question (e.g., "Q5x1a").
• identifier (String): Key name to match the user input against the JSON data.
• jsonFileUrl (String): URL of the JSON file to fetch the data from.
• colMapping (Object): Column mappings to control input and display fields.
  • inputCol: Column number where the input code is entered.
  • nameCol: Column number to display the matched name.
  • cityCol: Column number to display the matched city.
• overlaySelector (String, optional): CSS selector for the loading spinner. Defaults to ".overlay-spinner".

Return Value

• void: The function does not return any value. It performs DOM manipulations and AJAX operations.

Function Behavior

• Listens for input changes in the designated column of the question.
• Fetches data from the given JSON file using AJAX.
• If a matching entry is found:
  • Populates the related fields with name and city.
  • Disables editing of those fields to prevent manual changes.
• If no match is found, displays an error and clears dependent fields.

Example

Copy
const colMapping = {
    inputCol: 1,  // Column with code input
    nameCol: 2,   // Column for name output
    cityCol: 3    // Column for city output
};

validateCodeMapping("Q5x1a", "InstituteIdentifier", "abcd.json", colMapping);

Validate Sequential Ranking

The validateSequentialRanking function ensures that the ranking values in a given column of a question follow a strict ascending sequence starting from 1 (e.g., 1, 2, 3, ...). It is typically used in ranking-based surveys or forms to prevent skipped or duplicate ranks.

Parameters

• questionNumber (Number | String): The unique identifier for the question (e.g., "Q4x1a").
• columnNumber (Number): The column number that contains the ranking inputs.

Return Value

• true: If all rankings are valid and sequential starting from 1.
• false: If there are gaps, duplicates, or out-of-order values.

Function Behavior

• Collects all numeric inputs in the specified column of the given question.
• Sorts and compares the values to ensure they form a perfect sequence: 1, 2, 3, ..., N.
• Displays an error message if the values are not in sequential order or contain invalid entries.

Example

Copy
switch (QuestionNo) {
    case "Q4x1a":
        if (!validateSequentialRanking("Q4x1a", 2)) {
            return false;
        }
        break;
}

Validate Code Sequence

The validateCodeSequence function ensures that all values in a specified column are unique and non-zero. It is commonly used in tables where users enter ranking codes, positions, or unique identifiers to prevent duplication and invalid entries.

Parameters

• questionNumber (Number | String): The unique identifier for the question (e.g., "Q4x1a").
• columnNumber (Number): The column number to validate within the question's table.

Return Value

• true: If all values in the column are unique and non-zero.
• false: If any duplicate or zero value is found.

Function Behavior

• Scans all inputs in the specified column under the given question's table.
• Checks for zero values (e.g., 0 or empty) and duplicates.
• Displays an appropriate error message if invalid entries are found.

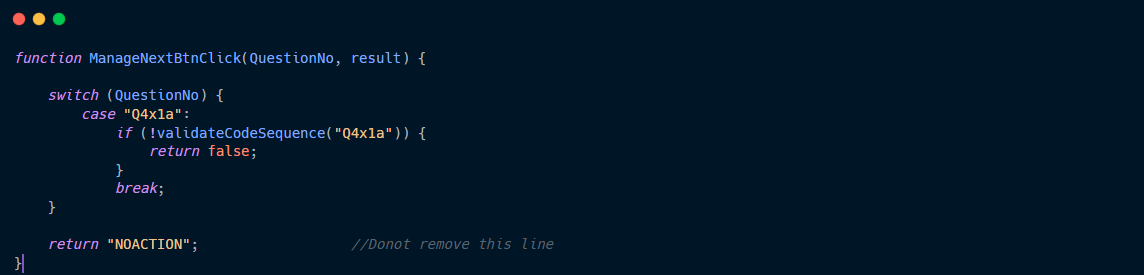

Example

Copy
switch (QuestionNo) {
    case "Q4x1a":
        if (!validateCodeSequence("Q4x1a", 2)) {
            return false;
        }
        break;
}

Validate At Least One Value Per Row

The validateAtLeastOneValuePerRow function checks every visible row within the question's table to confirm that at least one text input has a value. If any row is completely empty, an alert is shown, and the first empty input of that row is focused for user correction.

Parameters

• questionNo (Number | String): The identifier for the question, used to locate the relevant table (e.g., "Q2").

Return Value

• boolean: Returns true if all visible rows have at least one filled input; otherwise, false.

Usage Example

Copy
validateAtLeastOneValuePerRow("Q2");

Calculate Total for All Columns

The calculateTotalForAllColumns function calculates the sum of all numeric inputs across every column in the table associated with the given question number. This operation applies only when the answer type is "12", ensuring context-specific calculation.

Parameters

• questionNo (Number | String): The identifier for the question, used to locate the table by its ID (e.g., "Q1" or 1).

Return Value

• number: Returns the total sum of all numeric input values within the table.

Usage Example

Copy
const total = calculateTotalForAllColumns("Q1");
console.log("Total Sum:", total);

Get Rows with Values

The getRowsWithValues function parses a data string and extracts unique row numbers where at least one column has a non-empty value. It is useful for determining which rows should be considered during validation or data submission.

Parameters

• dataString (string): A pipe-separated string formatted as "row:column-value|...".
  Example: "1:2-10|2:3-15|3:1-"

Return Value

• Array<string>: An array of unique row numbers (as strings) that have at least one non-empty value.

Usage Example

Copy
const result = "1:2-10|2:3-15|3:1-";
const filledRows = getRowsWithValues(result);
console.log(filledRows); // Output: ["1", "2"]

Setup: Multi-Select Custom Grid with “Other (Specify)”

This setup enables dynamic control over a custom multi-select grid where a textbox (e.g., "Other (Specify)") is enabled only when a specific checkbox is selected. It involves two key steps:

1. enableDisableColumn(questionNumber, colname, true)
   Disables all textboxes in the specified column initially (recommended during page load).
2. handleCustomGridMultiSelectWithOther(questionNumber, othersOptionValue, colname)
   Adds logic to conditionally re-enable the textbox when the "Other" checkbox is selected.

Usage Scenario

Copy
enableDisableColumn('Q1', '2', true);
handleCustomGridMultiSelectWithOther('Q1', '12', '2');

Parameters

• questionNumber (string): The ID suffix used to target the grid table (e.g., #tblQ1).
• othersOptionValue (string): The value of the checkbox option representing "Other (Specify)".
• colname (string): The column number or name where the corresponding textbox exists (e.g., colname="2").

Function Behavior

• Listens to changes on checkboxes with class .form-check-input.option inside #tbl{questionNumber}.
• If the "Other" checkbox (based on othersOptionValue) is checked:
  • Enables the corresponding textbox (input[type="text"][colname=X])
  • Clears its value
  • Sets focus
• If unchecked:
  • Disables the textbox
  • Sets its value to "NA"
• Also handles .select-all checkboxes within the same row:
  • Checks or unchecks all checkboxes in that row
  • Automatically toggles the "Other" textbox based on its inclusion

Setup: Custom Grid Dropdown with “Other (Specify)”

This function enables or disables a textbox (e.g., "Other (Specify)") inside a custom grid row based on the selected dropdown value. It's designed for grid tables where each row includes a <select> dropdown and an accompanying "Other" textbox.

Usage Scenario

Copy
enableDisableColumn('Q5', '3', true);
handleCustomGridDropdownWithOther('Q5', '99', '3');

First, enableDisableColumn disables all textboxes in column 3 on page load. Then handleCustomGridDropdownWithOther activates logic to re-enable the textbox only if the selected dropdown value matches the "Other" option (value 99).

Parameters

• questionNumber (string): The ID suffix used to target the grid table (e.g., #tblQ5).
• othersOptionValue (string): The value of the dropdown option representing "Other (Specify)".
• otherColname (string): The column number or name used in the textbox's colname attribute.

Function Behavior

• Listens for change events on all <select> elements inside #tbl{questionNumber}.
• If the selected value matches othersOptionValue:
  • Enables the corresponding textbox (based on [colname=X])
  • Clears its value
  • Sets focus
• If any other value is selected:
  • Disables the textbox
  • Sets its value to "NA"

Conditionally Enable/Disable Questions

The conditionallyEnableDisableQuestions function dynamically enables or disables one or more target questions based on the selected value(s) from a source question. It's commonly used for conditional logic such as skip patterns in surveys or forms.

Usage Scenario

Copy
conditionallyEnableDisableQuestions('Q5', ['Q6', 'Q7'], ['3']);

In this example, if option 3 is selected in question Q5, questions Q6 and Q7 will be disabled (along with clearing any existing values).

Parameters

• sourceQNo (string): The question number of the source input (e.g., Q5).
• targetQNos (Array<string> | string): One or more target question numbers to enable/disable conditionally.
• disableOptionValues (Array<string>): The option values from the source question that trigger disabling of the target questions.

Function Behavior

• Listens for change events on the source question inputs (radio buttons).
• Checks if the selected value is in disableOptionValues.
• If matched, for each target question:
  • Clears selected values and disables input elements (checkboxes, radios, textboxes).
  • Adds a disabled-question class to the question container.
  • Sets mandatory attribute to 'N'.
  • If the target is a matrix question (answertype="10"):
    • Disables all radio buttons and text inputs inside the table.
    • Sets allgridrowmandatory attribute on the table to 'N' or 'Y'.
• If not matched:
  • Enables all target question inputs and restores required attributes.
  • Removes disabled-question styling.

Notes

• Works with both single and multiple target questions.
• Matrix grid questions should have answertype="10" set on the container.
• Use getQuesId internally to handle any prefix stripping logic consistently.

Matrix Row-Based Conditional Question Toggle

The handleMatrixRowConditionalToggle function dynamically enables or disables a target question based on specific values selected in certain rows of a matrix-style radio button table.

Usage Scenario

Copy
handleMatrixRowConditionalToggle('Q8', [
  { row: '1', triggerValue: '2', targetQno: 'Q9' },
  { row: '3', triggerValue: '3', targetQno: 'Q10' }
]);

In this example, if row 1 of Q8 has a value 2 selected, Q9 is disabled. If row 3 has value 3 selected, Q10 is disabled.

Parameters

• qno (string): The question number of the matrix table containing row-based radio buttons.
• conditionMap (Array of objects): Defines which rows/values should trigger disabling of specific questions.
  Each condition object contains:
  • row (string): The row identifier in the matrix (via rowname attribute).
  • triggerValue (string): The radio value that triggers disabling.
  • targetQno (string): The question number of the target to disable.

Function Behavior

• Listens to change events on matrix-style radio buttons inside #tbl{qno}.
• Checks whether a specified row has a triggerValue selected.
• If matched:
  • Disables and clears inputs in the corresponding targetQno.
  • Sets mandatory="N" and adds disabled-question class.
  • Sets allgridrowmandatory="N" if target is a matrix table.
• If not matched:
  • Re-enables the inputs.
  • Restores mandatory="Y" and removes disabled-question class.

Supported Input Types

• Matrix-style radio buttons (answertype="10")
• Standard radio, checkbox, and text inputs

Checkbox-Based Conditional Question Toggle

The handleCheckboxConditionalToggle function conditionally enables or disables a target question based on selected checkbox values from a source question. It supports various input types including checkboxes, radio buttons, text inputs, dropdowns, and textareas.

Usage Scenario

Copy
handleCheckboxConditionalToggle('Q12', [
  { triggerValue: '1', targetQno: 'Q13' },
  { triggerValue: '3', targetQno: 'Q14' }
]);

If checkbox with value 1 in Q12 is checked, Q13 will be enabled.
If checkbox with value 3 is checked, Q14 will be enabled.
If not selected, the corresponding target question(s) will be disabled and cleared.

Parameters

• qno (string): The question number of the checkbox group. All checkboxes should use this class (e.g., class="Q12").
• conditions (Array of objects): Array of condition rules. Each object must contain:
  • triggerValue (string): The checkbox value that should enable the target.
  • targetQno (string): The question number to enable/disable based on condition.

Function Behavior

• Listens to change events on all checkboxes with class .{qno}.
• On checkbox state change:
  • Collects all checked values.
  • If any condition’s triggerValue is matched:
    • Enables the corresponding targetQno inputs.
    • Removes the disabled-question class.
  • If not matched:
    • Disables and clears all inputs in the target question (checkbox, radio, text, select, textarea, button).
    • Adds the disabled-question class.
    • For matrix tables, sets allgridrowmandatory="N" when disabled, "Y" when enabled.
• Triggers an initial check on page load to set correct visibility based on pre-selected values.

Supported Target Inputs

• input[type="checkbox"]
• input[type="radio"]
• input[type="text"]
• <select>
• <textarea>
• <button>

Trigger Radio Change by Value

The triggerRadioChangeByValue function programmatically triggers the change event on a specific radio button based on its value and question number. This is useful for initializing or simulating user interaction logic tied to radio input changes.

Usage Scenario

Copy
triggerRadioChangeByValue('Q6', '2');

This will trigger a change event on the radio button with class clsQ6 and value 2, allowing any attached logic (such as conditional question toggles) to execute.

Parameters

• qno (string): The question number suffix used in the radio button class (e.g., clsQ6).
• value (string): The value attribute of the radio input that should be triggered.

Function Behavior

• Builds a selector using input[type="radio"].cls{qno}[value="{value}"].
• Triggers the change event on the matched radio input (if found).
• If no matching radio button is found, logs a warning to the console.

Notes

• This does not check the radio button — it only triggers the change event. Make sure the radio is also checked if needed.
• Useful in scenarios where conditional logic depends on change handlers.

Trigger Checkbox Change by Values

The triggerCheckboxChangeByValues function programmatically triggers the change event for one or more checkboxes based on their values and associated question number. This is commonly used to activate conditional logic that depends on checkbox selections.

Usage Scenario

Copy
triggerCheckboxChangeByValues('Q12', '1,3,5');

This will trigger the change event for checkboxes with class Q12 and values 1, 3, and 5. Any logic listening to change on these checkboxes (e.g., conditional toggles) will be executed.

Parameters

• qno (string): The question number used as a class name to identify checkboxes (e.g., class="Q12").
• values (string): A comma-separated list of checkbox values to trigger (e.g., "1,3,5").

Function Behavior

• Splits the values string into an array of individual values.
• Iterates through each value:
  • Builds a selector input[type="checkbox"].{qno}[value="{value}"].
  • Triggers the change event on the matched checkbox if found.
  • Logs to the console when triggered or if a matching checkbox is not found.

Notes

• This function does not check the checkboxes. If needed, use .prop('checked', true) before triggering the event.
• Primarily used to re-execute dependent logic without user interaction (e.g., on page load).

Trigger Matrix Radio Change by Row and Value

The triggerMatrixRadioValueChange function programmatically triggers the change event on a specific matrix-style radio button located in a specific row of a matrix table. This is useful for invoking conditional logic without manual user input.

Usage Scenario

Copy
triggerMatrixRadioValueChange('Q601_2', '1');

This will trigger the change event on the matrix radio button for question Q601, in row 2, with value 1. Any logic listening for that change will be executed.

Parameters

• qnoWithRow (string): A combined string in the format "Q601_2" where:
  • Q601: Matrix question number
  • 2: Row identifier (must match the rowname attribute)
• value (string): The value of the radio button to trigger in that row.

Function Behavior

• Parses the qnoWithRow string into a question number and row name.
• Constructs a selector targeting the matrix radio using:
  #tbl{qno} input[type="radio"].matrix[rowname="{row}"][value="{value}"]
• If the radio input exists:
  • Triggers its change event.
• If not found:
  • Logs a warning with the missing combination.

Notes

• This function does not select/check the radio button — it only fires the change event. Use .prop('checked', true) if you want to simulate both selection and logic.
• Make sure the rowname attribute exists on the matrix radio inputs.
• Useful for conditional question activation tied to matrix row selections.

Setup: Word Count Handler for Textareas

This setup enforces a minimum or maximum word count for textarea inputs in survey questions. It dynamically updates a message below the textarea indicating words remaining or exceeded.

1. setWordCountHandler(questionNumbers, minWords)
   Assigns word count logic to the specified questions' textareas. Can accept a single question, multiple questions as separate arguments, or an array of question numbers.

Usage Scenario

Copy
setWordCountHandler(["Q6", "Q7"], 10);

Parameters

• questionNumbers (array|string): One or more question IDs (e.g., ["Q6", "Q7"] or "Q6").
• minWords (number): Minimum word count required for the textarea.

Setup: Retrieve Input Value by Question Number

This function retrieves the value of the first input element (input, textarea, or select) inside a survey question container based on its question number (QNO). It supports specific answer types (e.g., text input or comment fields).

1. getInputValueByQno(qno)
   Returns the trimmed value of the first input element for the specified question number.

Usage Scenario

Copy
const answer = getInputValueByQno('Q6');
console.log(answer);

Parameters

• qno (string): Question number identifier (e.g., "Q6") used to locate the survey question container.

Setup: Retrieve Postcode by Question Number

This function retrieves the value of a postcode input field within a survey question, identified by its question number (QNO). It only returns a value if the input is marked to contain a postcode.

1. getPostcodeByQno(qno)
   Returns the trimmed value of the postcode input for the specified question number, or null if not found or not applicable.

Usage Scenario

Copy
const postcode = getPostcodeByQno('Q10');
console.log(postcode);

Parameters

• qno (string): Question number identifier (e.g., "Q10") used to locate the survey question container.

Setup: Retrieve URL Parameter Value

This function retrieves the value of a query parameter from the current page URL. If the parameter is not present, it returns a default value.

1. getUrlParamValue(paramName, defaultValue = null)
   Returns the trimmed value of the URL parameter specified by paramName. If the parameter does not exist, returns defaultValue.

Usage Scenario

Copy
const surveyId = getUrlParamValue('surveyId', 'defaultSurvey');
console.log(surveyId);

Parameters

• paramName (string): The name of the URL query parameter to retrieve (e.g., "surveyId").
• defaultValue (any, optional): The value to return if the parameter is not found. Defaults to null.

Setup: Enable/Disable Input Fields by Question Number

This function dynamically enables or disables all input, textarea, and select fields for a given survey question identified by its question number (QNO). It also applies styling to indicate the disabled state.

1. setInputEnabledByQno(qno, isEnabled)
   Enables or disables all form fields within the question container.

Usage Scenario

Copy
setInputEnabledByQno('Q6', false); // Disable all fields for Q6
setInputEnabledByQno('Q7', true);  // Enable all fields for Q7

Parameters

• qno (string): Question number identifier (e.g., "Q6") used to locate the survey question container.
• isEnabled (boolean): Pass true to enable the fields, false to disable them.

Setup: Matrix Single-Answer Straight Check

This function checks for "straight-lining" in matrix single-answer questions. Straight-lining occurs when the respondent selects the same answer consecutively across multiple rows. If the maximum allowed consecutive identical answers is exceeded, an error message is displayed.

1. matrix_SingleAnswer_StraightCheck(qno, result, maxStraightItems)
   Validates a matrix question to ensure no straight-lining beyond the allowed limit.

Usage Scenario

Copy
matrix_SingleAnswer_StraightCheck('Q12', '', 3); // Checks Q12 for 3 consecutive identical answers

Parameters

• qno (string): Question number identifier (e.g., "Q12").
• result (string): Pipe-delimited string of responses (e.g., "1:A|2:A|3:B"). If empty, the function fetches the current answers automatically.
• maxStraightItems (number, optional): Maximum allowed consecutive identical answers. Defaults to the total number of items in the matrix.
